Span kinds reference

Every span in Zespan has a span_kind field that describes the type of operation it represents. The span kind controls how the span is rendered in the flame graph, which icon it gets in the trace detail view, and how it is counted in agent analytics. Understanding span kinds is essential for building multi-agent systems that look correct in the dashboard.

Complete span kind reference

llm

A direct call to a language model API. This is the most common span kind. Set automatically by all provider wrappers (wrapOpenAI, wrapAnthropic, wrapGoogle, wrapGoogleGenAI, etc.).

image_gen

An image generation call. Set automatically when a Gemini image model (e.g. gemini-3.1-flash-image) returns inline_data parts, or when ai.models.generateImages() is called via the @google/genai SDK.

video_gen

A video generation call. Set automatically when ai.models.generateVideos() is called (Veo models). Tracks initiation latency; the actual video is retrieved separately via the returned long-running operation.

embedding

A text embedding call. Set automatically when ai.models.embedContent() or genai.embed_content() is used. output_tokens is always 0; cost is calculated on input tokens only.

agent

The execution scope of a single agent. Created by withAgent() in TypeScript, with_agent() in Python, and the ADK/LangChain integrations automatically. Contains all child spans produced during the agent’s run.

tool

A single tool or function invocation by an agent. Created by agent.traceTool() or automatically by the LangChain and ADK integrations when a tool is called.

planning

A planning step created by agent.logPlan(). Records the steps the agent intends to take before executing them. Useful for debugging agent reasoning.

handoff

An agent-to-agent delegation. Created by agent.delegateTo() or automatically by multi-agent frameworks. Links to the target agent span in the trace tree.

retriever

A document retrieval operation (vector search, keyword search, hybrid). Set on manual spans in RAG pipelines via startSpan({ span_kind: "retriever" }) or automatically by the LangChain retriever handler.

guardrail

A guardrail check execution. Set automatically when the SDK’s guardrail client makes a check request. Shows pre/post phase, action taken (allowed/blocked/redacted), and latency.

mcp_client

A call made through an MCP client (initialize, tools/list, tools/call), recorded by the SDKs automatically. Carries the MCP server, transport, whether the tool was listed, whether the arguments fit its schema, and the error code. See MCP.

mcp_server_tool

A tool of your own MCP server, wrapped with mcpServerTool() (TypeScript) or @mcp_server_tool (Python); joins the caller’s trace. See MCP.

gateway

A span from an AI gateway that is not a model call: the gateway’s proxy, routing and infrastructure spans and the retry or fallback attempts of one request, stored when a gateway exports OTLP to /v1/traces. Never counted as a model call (model-call and LLM call counts); proxy, routing and infrastructure spans have no model, tokens or cost of their own. Like any span they still count toward your span quota and appear in trace and request totals. Failed attempts keep their HTTP status, error type and provider. See AI gateways.

general

A generic custom operation that doesn’t fit another category. The default for manually created spans that don’t specify a span_kind.

Flame graph rendering

Each span kind is rendered differently in the trace flame graph:

Span kind	Color (dark theme)	Icon	Indentation
`llm`	Cyan (`#00d4ff`)	CPU chip	Based on nesting depth
`image_gen`	Pink	Image	Based on nesting depth
`video_gen`	Violet	Video	Based on nesting depth
`embedding`	Teal	Brackets	Based on nesting depth
`agent`	Purple	Bot	Creates a group header
`tool`	Amber	Wrench	Child of agent span
`planning`	Slate	List	Child of agent span
`handoff`	Blue	Arrow	Child of agent span
`retriever`	Green	Search	Child of LLM or general span
`guardrail`	Orange	Shield	Before/after LLM span
`mcp_client`	Same as `general`	Same as `general`	Child of the span active when the call was made
`mcp_server_tool`	Same as `general`	Same as `general`	Child of the caller’s span
`gateway`	Same as `general`	Same as `general`	Child of the gateway’s request span
`general`	Gray	Circle	Based on nesting depth

Setting span kind manually

When creating a manual span with startSpan(), set the span_kind explicitly:

TypeScript
Python

import { startSpan } from "@zespan/sdk";

// Retrieval span
const { span } = startSpan({
  name: "vector-search",
  span_kind: "retriever",
  provider: "custom",
});

try {
  const docs = await vectorStore.search(query, { topK: 5 });
  await span.end({ status: "success" });
  return docs;
} catch (err) {
  await span.end({ status: "error", error_message: String(err) });
  throw err;
}

from zespan import start_span

span = start_span(name="vector-search", span_kind="retriever", provider="custom")

try:
    docs = vector_store.search(query, top_k=5)
    span.end(status="success", documents=docs)
except Exception as err:
    span.end(status="error", error_message=str(err))
    raise

How span kinds appear in the agent registry

The Agents section of the dashboard uses span kinds to build its agent registry:

Spans with span_kind: "agent" appear as agent nodes
Their parent_span_id is used to build the coordinator-specialist hierarchy
tool spans are aggregated under their parent agent to build the tool inventory
handoff spans are used to draw delegation arrows between agents

To have your agent appear correctly in the registry, always set agentRole: "coordinator" on orchestrators and agentRole: "specialist" on sub-agents.

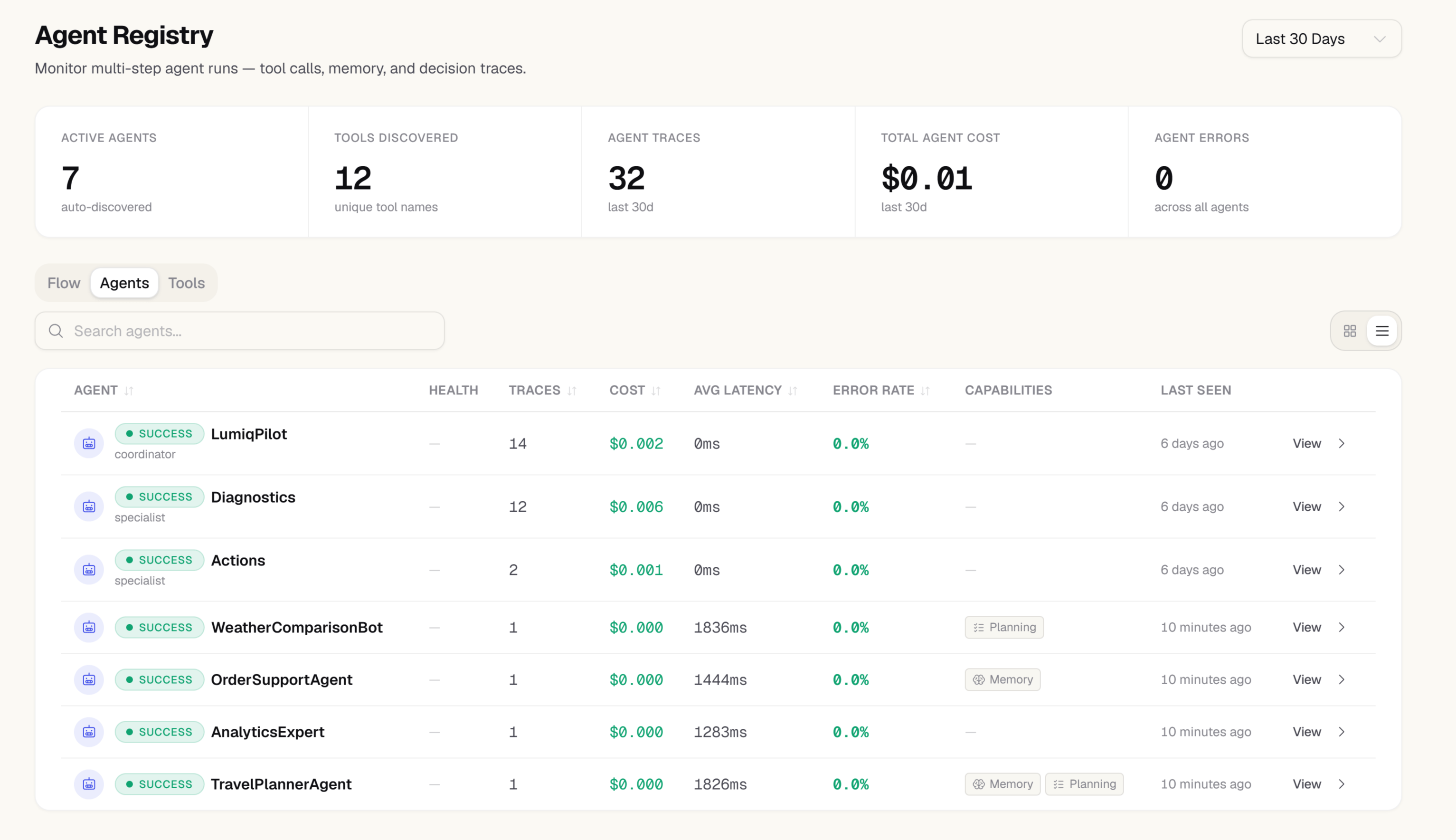

Agent registry view in Zespan showing coordinator and specialist hierarchy

SpanKind in the event schema

The span_kind field is part of the ZespanEvent schema sent to the ingest endpoint. When building a custom integration (not using an SDK wrapper), include it explicitly:

{
  "event_id": "...",
  "trace_id": "...",
  "span_id": "...",
  "span_kind": "tool",
  "provider": "custom",
  "model": "custom",
  "operation": "tool-call",
  ...
}

Valid values: "llm", "image_gen", "video_gen", "embedding", "agent", "tool", "planning", "handoff", "retriever", "guardrail", "general".
